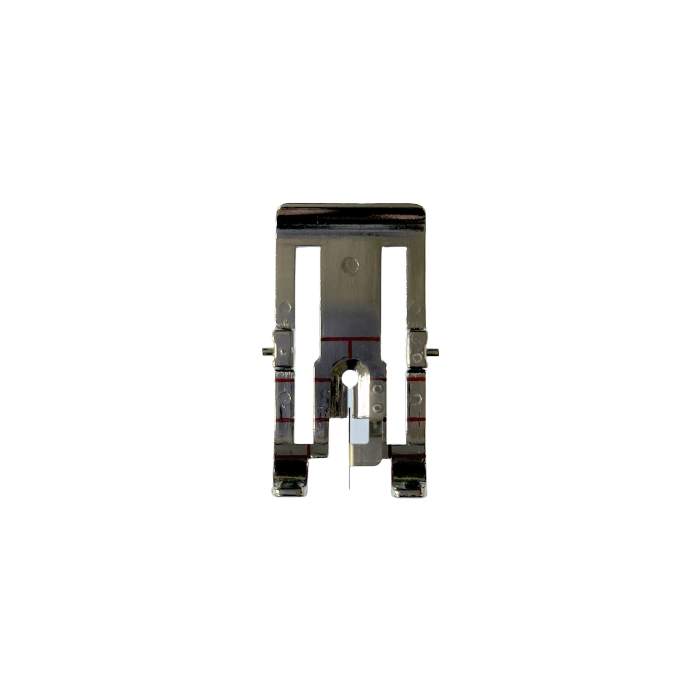

Husqvarna Viking | Changeable Quilters Guide Foot | 413155545

Changeable Quilters Guide Foot for Interchangeable Dual Feed

Brand: Husqvarna Viking
Category: Groups 5, 6, 7, 8
Not suitable for: Emerald series, Eden Rose 250M, Tribute 140M, Tribute 145M, Onyx series
Required accessory: Interchangeable Dual Feed

The Changeable Quilter’s Guide Foot is attached to the Interchangeable Dual Feed and used when stitching in the ditch along a seam line. The foot has guidelines to make it easy to accurately turn corners for ¼ (6mm) or 1/8 (3mm) seams.

The Interchangeable Dual Feed with Changeable Presser Feet is designed to feed layers of fabric and/or batting evenly. It is perfect for quilting, sewing velvet, some stretch fabrics, imitation leathers and fabrics that need accurate pattern matching.

Information on use:

1. Stitching in the ditch means stitching in the finished seam line.
2. To attach the Interchangeable Dual Feed to your machine, first remove the presser foot ankle by unscrewing the ankle screw.
3. Place the Interchangeable Dual Feed onto your machine from the back, positioning the fork over the needle clamp screw. Screw the Interchangeable Dual Feed onto the presser foot bar with the presser foot ankle screw.
4. With presser foot bar in the up position, place the Changeable Quilter’s Guide Foot under the Interchangeable Dual Feed.
5. Snap on the Changeable Quilter’s Guide Foot. Select the centre needle straight stitch and adjust it up to a maximum stitch length of 6.
6. Place the fabric to be stitched under the presser foot aligning the guide in the centre of the foot with the seam line.
7. To pivot ¼ (6mm) from the end: Select the Needle Up/Down to activate the needle down. Sew the seam. Stop sewing when the front line on the foot is even with the edge of the fabric. Raise the presser foot, pivot and continue sewing.
8. To remove the changeable foot, push the front of the foot upwards until the foot snaps off.

Part number: 413155545

Please note that this foot is for use with the Interchangeable Dual Feed (sold separately) and cannot be attached directly to your sewing machine.
